3 µm Er:YAG DPSS LASERS
YOU HAVE QUESTIONS?
OVERVIEW
-

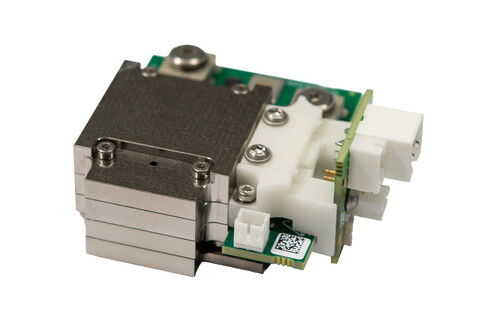

Compact monolithic laser systems
-
Highly efficient diode pumping
-
Fiber-coupled versions available
-
No high-voltage required
-
Reduced waste heat
- DPM-3 (Er:YAG) air-cooled
-
Maintenance free
-
Process variability
SPECIFICATIONS
Average Output Power (max)
(3 - 80) W
Max. Pulse Energy
(0.06 - 2500) mJ
Beam Quality
M2 < (5 - 40)
Wavelength
2940 nm
Product Variants
DPM-3 (Er:YAG)
Art. No. 400367: 3 W compact monolithic laser system. Air-cooled. Free beam. Fiber coupled and aiming beam options available. For medical and industrial application.
DPM-80 (Er:YAG)
Art. No. 301967A: 80 W compact monolithic laser system. Free beam. Fiber coupled and aiming beam options available. For medical and industrial application.
DPM-50 (Er:YAG)
Art. No. 44601: 50 W compact monolithic laser system. Free beam. Fiber coupled and aiming beam options available. For medical and industrial application.
DPM-25 (Er:YAG)
Art. No. 35421: 25 W compact monolithic laser system. Free beam. Fiber coupled and aiming beam options available. For medical and industrial application.
